T-Post Puller
- Equipment
Innovation
Removing or raising T-posts can be a time consuming and sometimes labor intensive project. Generally a chain and a loader can be used to do this but can also be dangerous. T-posts are typically used for CDOT right of way fence and sometimes for control measures. Not only is it difficult to remove a single post from deep in the ground, but tearing out an entire line of fencing also requires the removal of many other posts.

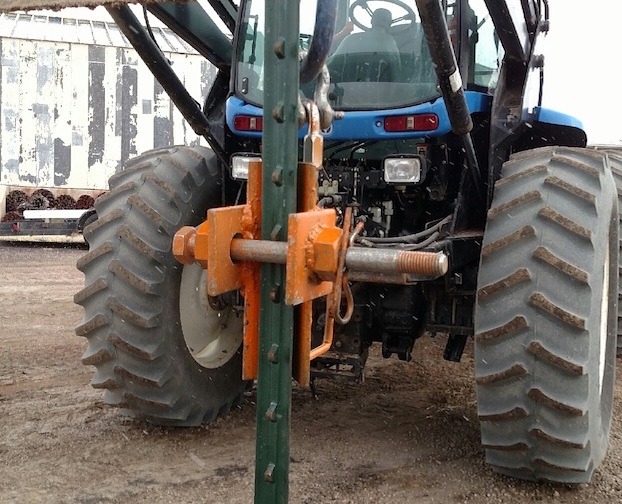

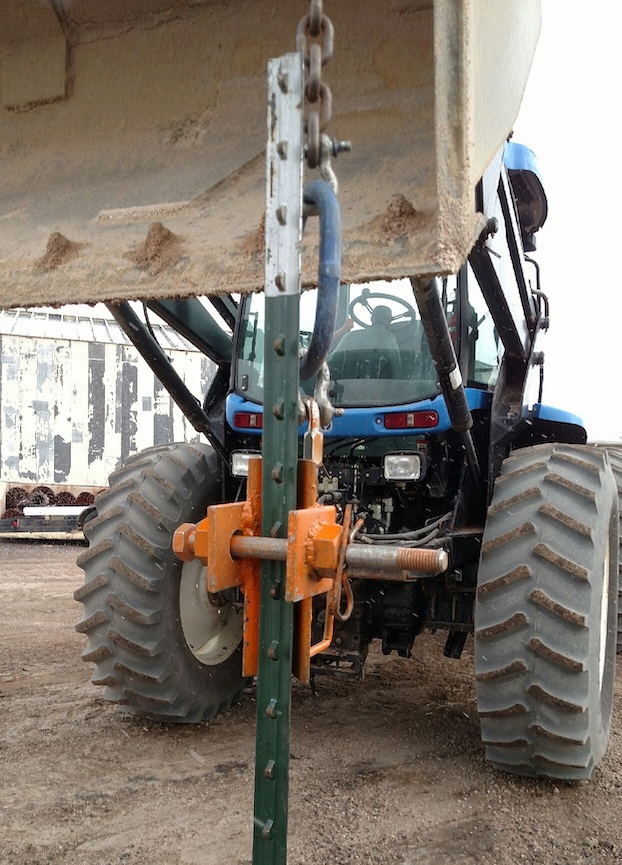

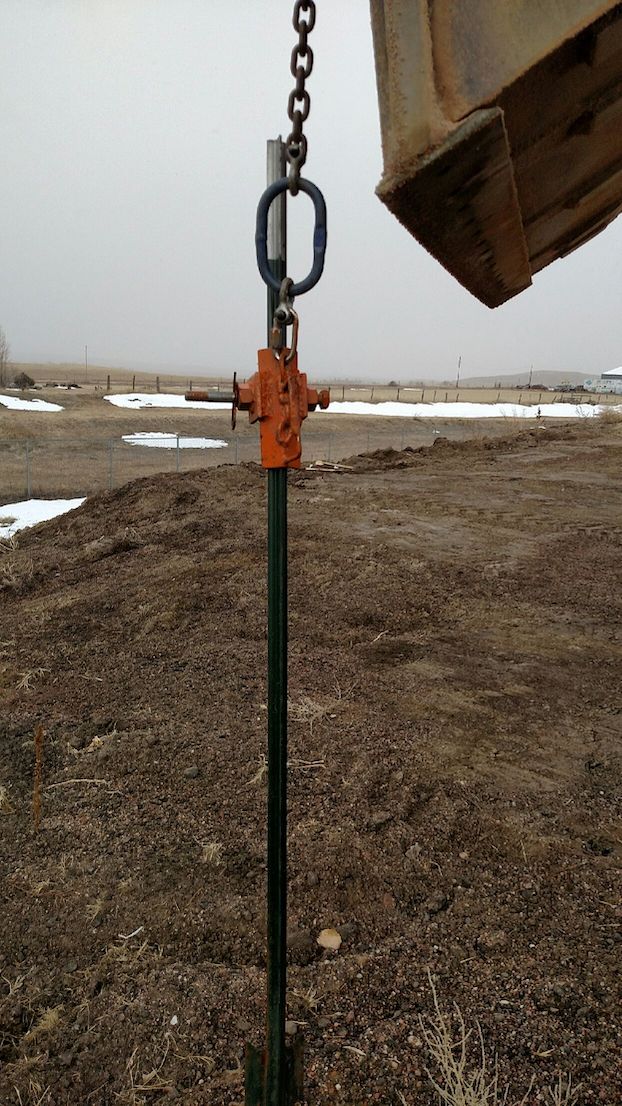

The simple design of CDOTs T-post puller allows for the safe handling of the posts and can be repeated down an entire fence line. The idea is to attach a piece of angle iron to the back side of the post and secure it with a guardrail bolt that locks onto the front of the post. A chain is attached to the puller and the chain can then be attached to a loader bucket. The loader then does all of the work to slowly raise or remove the post. The smallness of the puller allows it to be placed between the wires. By using equipment that is already in the field, this eliminates the need for manual removal without incurring additional costs and labor. The chain is pulled upward which focuses the force of the chain to be parallel to the post in a safe and controlled manner, with the ground person at a safe distance from the chain and loader.
By using equipment that is already in the field, this eliminates the need for manual removal without incurring additional costs and labor. The chain is pulled upward which focuses the force of the chain to be parallel to the post in a safe and controlled manner, with the ground person at a safe distance from the chain and loader.
Benefit and Implementation
The total cost of this idea? Zero dollars. All of the parts involved are recycled or reused from other areas of the patrol. This idea can be implemented in all regions as T-posts are prevalent statewide. And the lack of a need to acquire materials or manufacture the device means it can be put into practice almost immediately.
